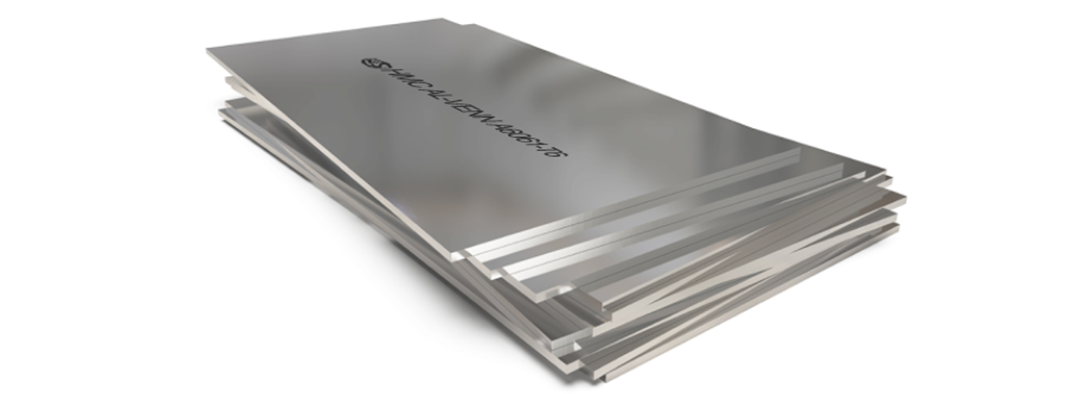

AL VENN is a domestically developed aluminum plate brand (PLATE A6061 T6) by HMC.
Competitive Price
Excellent Surface Finish
Accurate Thickness and Flatness Control
More competitive price than conventional A6061 plates
Excellent surface finish allows for easier post-processing
Accurate thickness and flatness control eliminates the need for face milling or additional surface processing
| Alloy | Temper | Thickness (mm) | Size (Width x Length ; mm) | Remarks |
|---|---|---|---|---|
| A6061 | T6 | 4~41 | 1,250 x 2,500 1,250 x 5,010 1,350 x 3,500 1,524 x 5,010 |
Double-sided brushing Protective film on both sides |
| T6 | 46~100 | 1,250 x 2,500 1,524 x 3,048 |
Flatness correction available | |
| T6 | 101~300 | Custom cut size available |
| Thickness (mm) | AL-VENN | International Standard | ||
|---|---|---|---|---|
| Thickness Tolerance (mm) | Flatness (mm) | Thickness Tolerance (mm) | Flatness (mm) | |
| 4~20 | +/- 0.2 | 3 | +/- 0.6~0.8 | 7 |
| 25~41 | +/- 0.2 | 3 | +/- 0.9~1.30 | 7 |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
|---|---|---|---|---|---|---|---|---|---|
| A6061 | 0.4 ~ 0.8 | 0.7 | 0.15~0.40 | 0.15 | 0.97~1.20 | 0.04~0.35 | 0.25 | 0.15 | 0.05 / 0.15 |
| Tensile Strength (T/S) | Yield Strength (Y/S) | Elongation (%) |
|---|---|---|
| 295 MPa | 245 MPa↑ | min 8% |
